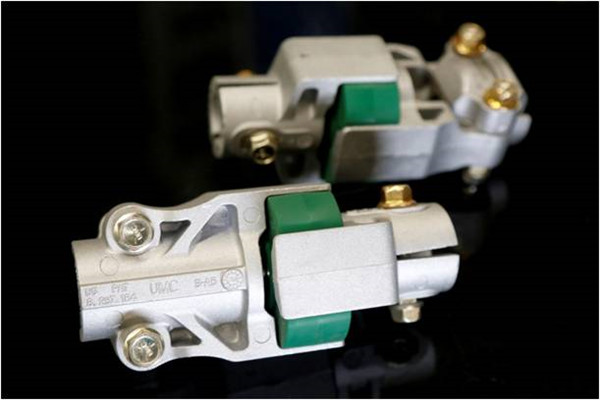

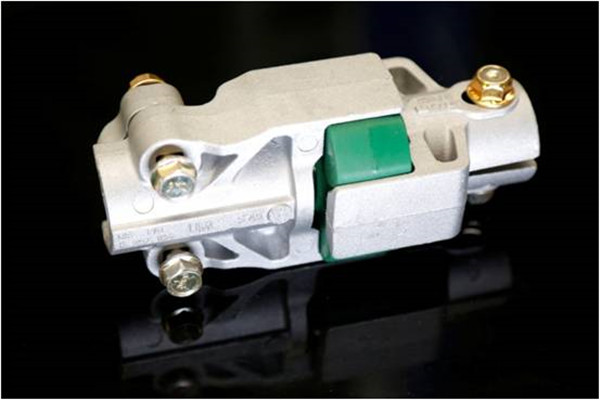

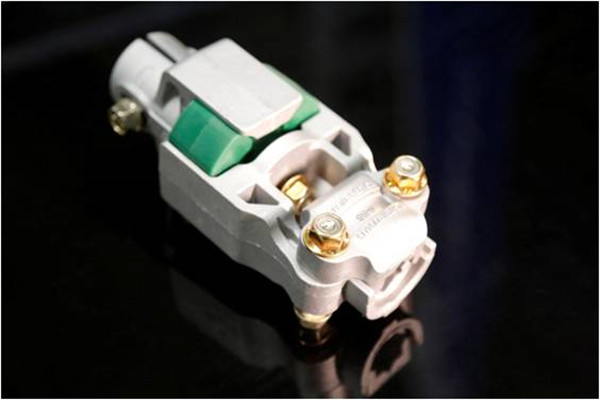

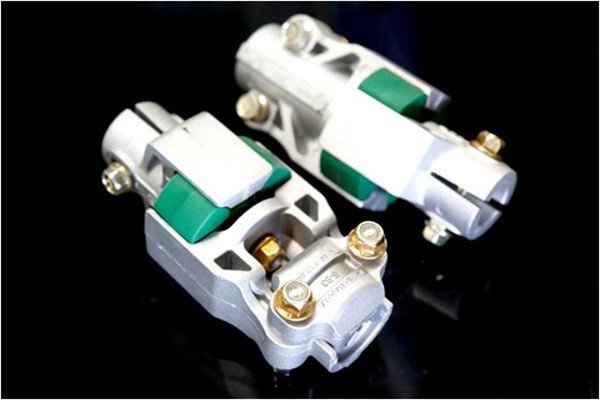

UMC CX COUPLER MULTI-SHAFT Features and Benefits:

-Units come pre-assembled

-No assembly time

-Saves time in the field

-Meets and exceeds the existing UMC coupler performance

-Universal design - fits all square shaft sizes - standard and metric

-UV-stabilized urethane puck

-Easily converts from Non-Towable to Towable

-Centering rod for maintaining alignment at peak torque

-SQUEX Bolts (Square Neck - Hex Head) for easy one wrench installation

The UMC® CX Coupler is a shock-attenuating drive connection between the gearmotor and final drive gearbox. Its design reduces set up time for new center pivots and laterals. Similarly, it is the perfect compliment for towable systems due to the ability to control disengagement at the gearbox. From the service tech’s perspective, it is a must-have solution because this one coupler fits all brands of center pivots and laterals.

Use Scenarios

Rapid Deployment in New Center Pivot Installations

Within large-scale agricultural operations deploying new center pivot irrigation systems, the UMC CX Coupler facilitates accelerated setup by offering pre-assembled, universally compatible drive connections. This ensures quick integration with existing gearmotor and gearbox assemblies irrespective of brand or shaft sizing standards, optimizing project timelines. The shock-attenuation capacity benefits pivot start-up by reducing drivetrain stress, promoting compliance with mechanical durability standards and minimizing early-stage downtime. Its conversion capability from non-towable to towable configurations also allows operators to adjust pivot mobility post-installation, aligning with evolving operational strategies and terrain management. As a result, the coupler integrates efficiently into irrigation installation workflows, enhancing throughput and asset utilization.

Field Upgrades for Towable and Retrofit Irrigation Systems

In operational contexts requiring upgrades or retrofits of legacy center pivot or lateral move irrigation infrastructure, the UMC CX Coupler supports seamless replacement and adaptation processes. Its cross-brand compatibility simplifies integration with older or mixed equipment inventories, reducing the need for bespoke components. The coupler’s durable urethane puck and centering rod maintain alignment and shock mitigation through prolonged use, adhering to stringent reliability requirements critical in agricultural production cycles. Additionally, the ability to easily convert couplers from non-towable modes to towable configurations aids in field mobility and system versatility. This adaptability supports maintenance and operational workflows by reducing component downtime and enabling straightforward system reconfiguration in response to agricultural demands.

FAQ

What materials are used in the UMC CX Coupler to ensure durability?

Our UMC CX Coupler features a UV-stabilized urethane puck, which provides long-lasting shock attenuation and resistance to environmental wear. Combined with high-quality SQUEX Bolts and precision components, the coupler ensures consistent performance within your linear irrigation system.

Is the UMC CX Coupler compatible with different brands and shaft sizes?

Yes, we designed the CX Coupler with a universal fit that accommodates all standard and metric square shaft sizes. This compatibility across multiple brands simplifies integration into existing center pivots or linear irrigation system setups.

Can Irritech assist with installation and maintenance of the CX Coupler?

We provide comprehensive technical support throughout installation and maintenance. The CX Coupler comes pre-assembled with one-wrench SQUEX Bolts for quick setup, and our team is available to guide your technicians or validate field alignment to ensure efficient operation.

How does the CX Coupler support towable pivot configurations?

The CX Coupler easily converts between Non-Towable and Towable modes, allowing controlled disengagement at the gearbox. This flexibility supports field reconfiguration and maintenance, enhancing the adaptability of your center pivot or related irrigation system.
